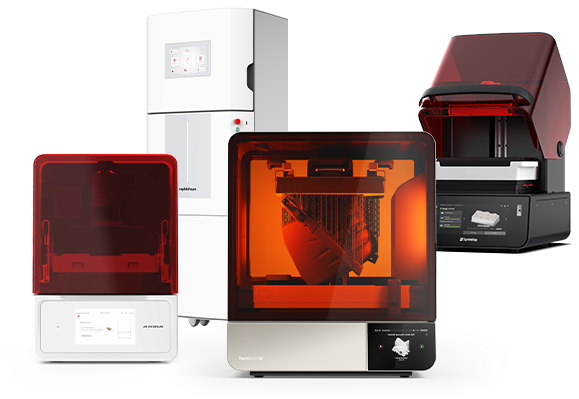

3D Printers

Dental 3D printers can produce applications such as:

• Crown/Bridge Models
• Clear Aligner Models
• Surgical Guides
• Splints/Occlusal Guards
• Patterns for Casting and Pressing
• Hawley Retainers
• Full Dentures

Additive manufacturing is making digital dentistry a no-nonsense business choice, combining high quality and improved patient care with low unit costs and streamlined workflows.

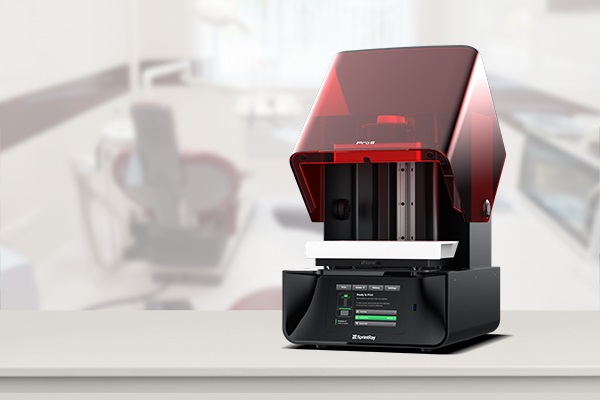

Today, three 3D printing technologies are common in dental: stereolithography (SLA), digital light processing (DLP) and material jetting. Each technology can deliver the precision and accuracy needed for dental applications, but quality can vary among different machines and systems.

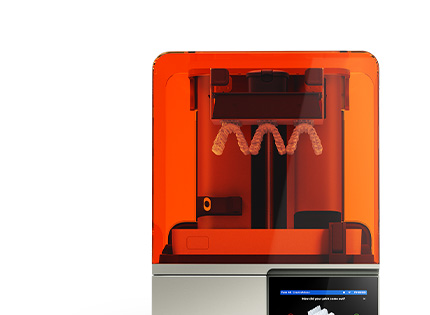

1. Stereolithography (SLA) – liquid resin is selectively exposed to a laser beam across the print area, solidifying resin in specific areas. Stereolithography is highly accurate and has the best surface finish of the three technologies. SLA printers offer large build volumes and a wide range of materials for various applications. Switching materials is as easy as swapping the resin tank and cartridge. The combination of small footprint, simple workflow and low price make desktop SLA printers well-suited for both dental labs and practices.

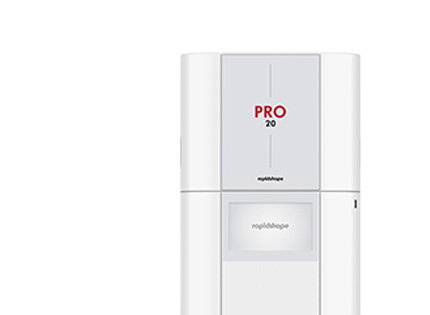

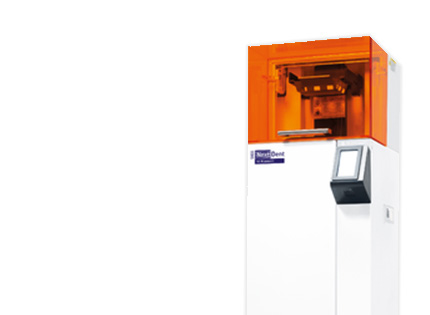

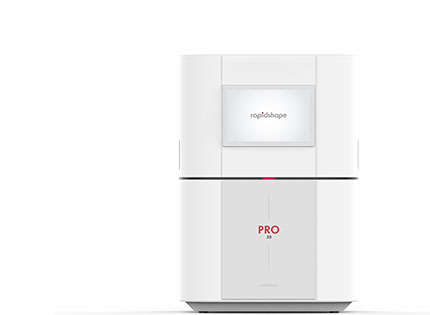

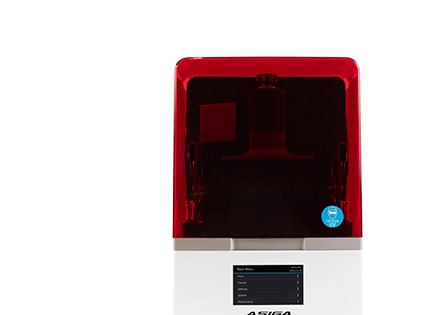

2. Digital Light Processing (DLP) – Digital light processing operates with the same chemical process as SLA but uses a digital projector as a light source to solidify the resin, rather than a laser. DLP printers have a small footprint, simple workflow and wide range of material options, but at a substantially higher cost than desktop SLA printers. DLP parts also tend to show voxel lines—layers formed by small rectangular bricks due to digital screen—and have a generally lower quality surface finish.
3. Material Jetting – Material jetting (PolyJet and MultiJet Modeling) 3D printers work similarly to inkjet printing, but instead of jetting drops of ink onto paper, they jet layers of liquid resin onto a build tray and cure them instantly using light. Material jetting technologies were the most common in the dental industry a few years ago, but expansion was limited by their high cost and the large size of the machines. They require extensive post-processing and the surface finish of parts produced with this technology is generally inferior to SLA or DLP. Material jetting systems have high throughput but can only be used for a limited range of applications due to the costly, proprietary materials.

• Accuracy and Precision
• Ease of Use and Reliability
• Cost and Return on Investment
• Materials and Applications
• Throughput and Scalability

Dental 3D printers can start at a few thousand dollars for resin desktop 3D printers (SLA or DLP) ot up to tens of thousands of dollars for metal 3D printers designed for direct production. Some manufacturers only make dental 3D printers while other have developed specific dental product lines.

Entry-level desktop SLA or DLP 3D printers start around $1,000 and can be used to produce molds using a special casting resin. Industrial-grade dental additive manufacturing systems can cost up to tens of thousands of dollars. Dental 3D printers’ prices vary based on several factors:

• Print quality – the higher the resolution offered by the 3D printer the better, and often the more expensive the 3D printer.
• Build volume – more expensive dental 3D printers usually offer a larger print volume, allowing dental labs to optimize their production flow and increase their ROI.

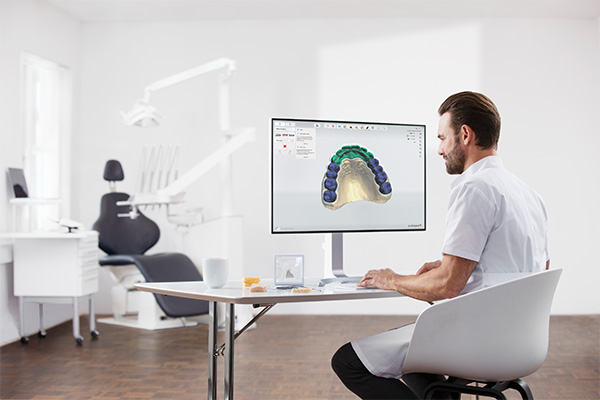

• Dental 3D software – a special software is required to create custom dental implants based on a 3D scan of the patient’s mouth. The dental 3D software is an important component of the digital dentistry value chain and can be expensive.
• Reliability and repeatability – perhaps the most important factor when it comes to using 3D printing for dental appliances production. Professional dental 3D printers must be able to consistently deliver high quality prints, especially in a dental lab environment where quality controls are frequent, and a high production output is expected. Therefore, some dental 3D printers are more expensive than other because they offer this reliability.
