Sterling Soft Tissue Dental Diode Lasers

Key Features

STERLING® diode lasers are dentistry’s most user-friendly diode lasers to date. With a simplified control panel, the STERLING® diode lasers feature the latest and finest solid-state diode laser technology, accurate power output and a consistent wavelength for smooth, precise, and clean, tissue modification, and therapeutic procedures.

Small. Precise.
Endlessly Capable.

Do more dentistry in less time with improved patient comfort.

The STERLING® Laser packs endless capability into a lightweight, portable and highly maneuverable design. It coagulates and cauterizes the treatment area for immediate hemostasis, fast healing and reduced swelling.

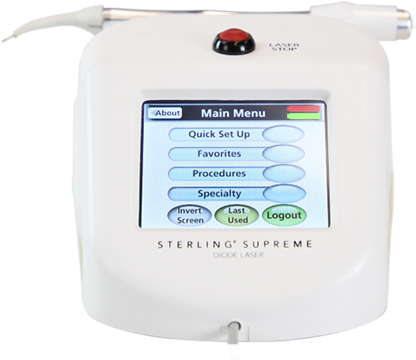

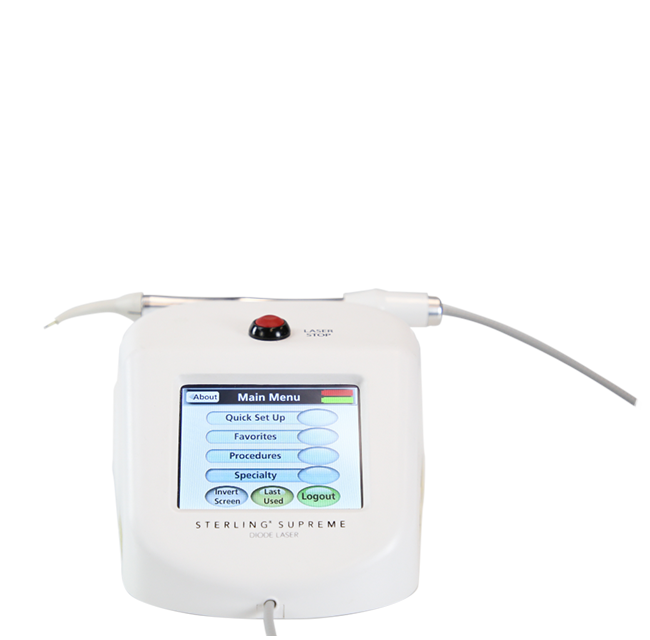

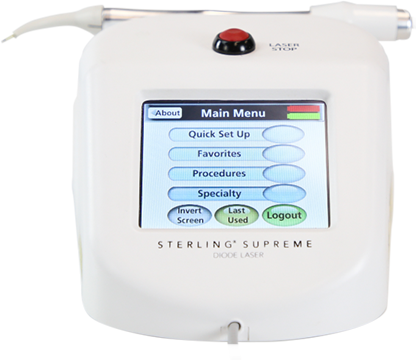

STERLING® Supreme Diode Laser
810 nm ± 20 nm
KEY FEATURES AND BENEFITS
Touch Screen Monitor
Ergonomic Handpiece Design
Inverted Screen Capability
Wireless Foot Pedal
Uni-Dose Fiber Tips
Lithium Polymer Battery
Therapeutic Handpiece
Whitening Handpiece
Electronic Key Lock

Laser Classification: Laser Diode:
Class 4 Laser Device
Weight: 2.5 lbDimensions:
Unit in Cradle: 9.5” x 4” x 6”
Unit Only: 7” x 4” x 3”
Power Requirements:
110-120 VAC @ 60 Hz
Wireless Pedal – 9V Battery
Power Range:
Aiming Beam (0.3 Watts)
100mW to 3.0 Watts in 100 mW Increments
Audible & Visual Notifications: Yes
Amperage: 3 Amps @ 110-115 VAC
Handpiece Sleeves:
Soft Tissue Surgery
Therapeutics
Teeth Whitening
Settings:
Manual
Capability for 8 Customized Settings
5 Levels of Aiming Beam Intensity
Wavelength:
Laser: 810 nm ± 20 nm
Aiming Beam: 630 nm – 660 nm ± 15 nm
Beam Divergence: 9 degrees ± 1 degree
Modes:
Continuous or Pulse Mode
Hertz Rate in Pulse Mode – Fixed: 10 Hz
Pulse Duration – Fixed: .05 Seconds
Duty Cycle (Pulse Mode): 50%
Complies With:
IEC 60601-2-22
IEC 60825-1
UL 60601-1
FCC Parts 15 & 18 (47 CFR)
IC-RSS 210
SHOP NOW WATCH VIDEO

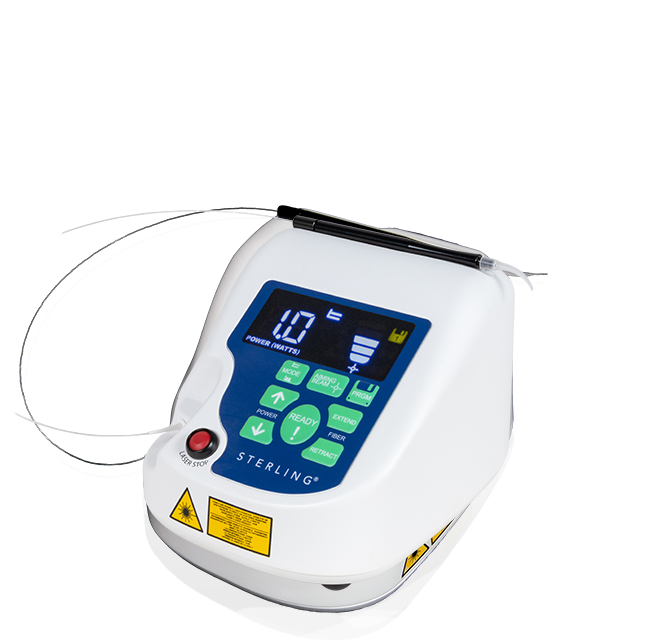

STERLING® Diode Laser
810 nm ± 20 nm
KEY FEATURES AND BENEFITS
Unique Fiber Management System
Wireless Power Foot-Control
LED Display
Small Foot Print
Simple Touch Panel

The Unit will have Two Modes of Operation Selected by a Button on the Base Unit:
Continuous – 0 to 5.0 Watts
Pulse – 0 to 5.0 Watts
Power Requirements:
Sterling Unit 110 V / 220 V 50-60 Hz
Sterling Pedal 9 V Lithium Battery
Power Consumption: < 30 Watts
FDA Cleared for: Soft tissue applications
Fiber Thickness: 400 microns
Audible Signal:
Start and stop
Change of power
Start of the Laser – Safety Keyed On/Off, Foot Pedal Laser Operation:
Needs to start immediately when turned on
SHOP NOW WATCH VIDEO

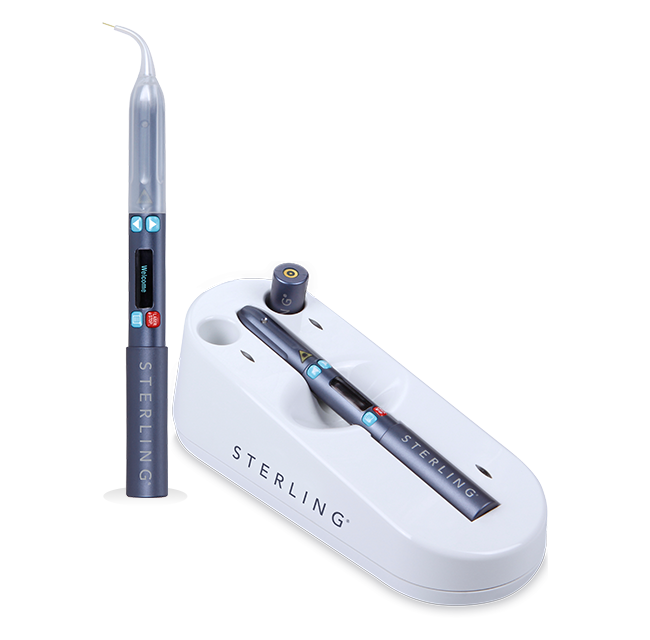

STERLING® Pen Laser
808 nm ± 5 nm
KEY FEATURES AND BENEFITS
12 user-friendly preset procedures for increased efficiency
Light-weight design only 1.9oz for the handpiece
Extended battery life, enough for 15 procedures on a single charge
Completely wireless unit to enable easy movement between operatories

Start of the Laser:
Software lock welcome screen with lock key
Laser firing delay – there is a brief delay between depressing the foot switch and the onset of the laser activation
Duty Cycle:
Continuous: 0.1 to 2.0 Watts at 100%
Pulse: 0.1 to 2.0 Watts at 50%
Power Requirements:
Sterling Charger Unit: 100-240 VAC @ 50 to 60 Hz
Sterling Wireless Foot Pedal: AA Batteries
Maximum Power: 2 Watts ± 20%
FDA Cleared for: Soft tissue applications
Fiber Thickness: 400 microns
Audible Signal:
High Frequency buzz
Any changing of settings
SHOP NOW WATCH VIDEO
